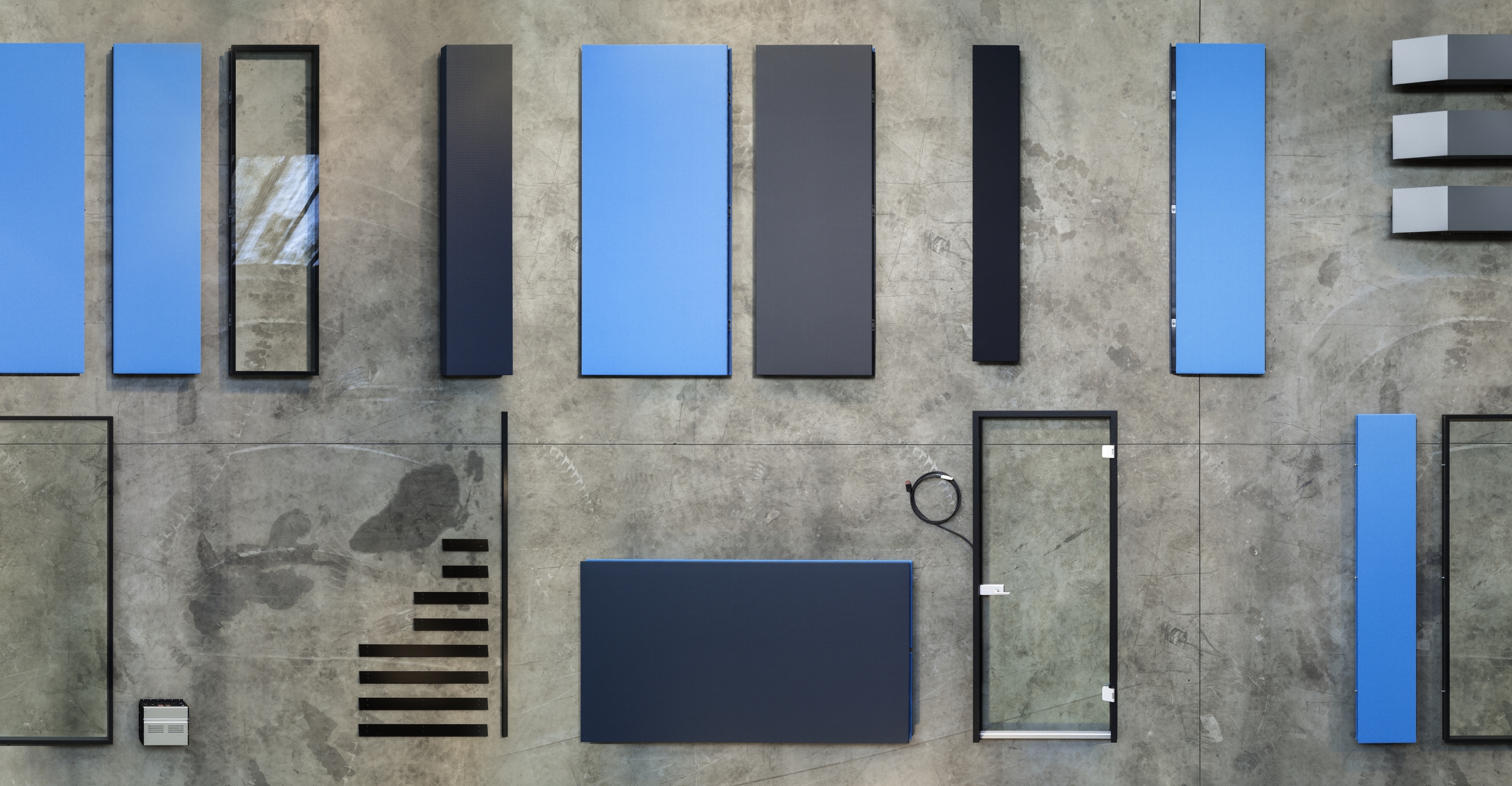

The Acoustic Modular Rooms system provides versatile elements for almost all situations of communication as well as being and working together. As requirements change and with these elements you may reinvent yourself, expand or downsize time and again.

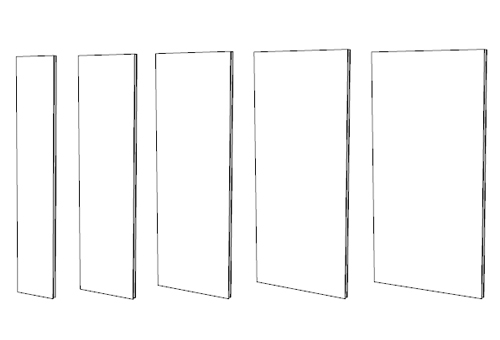

The tall wall element of 2270 mm is available in five different widths of 400, 600, 800, 1000 and 1200 mm.
55 mm thickness, covered with textile.

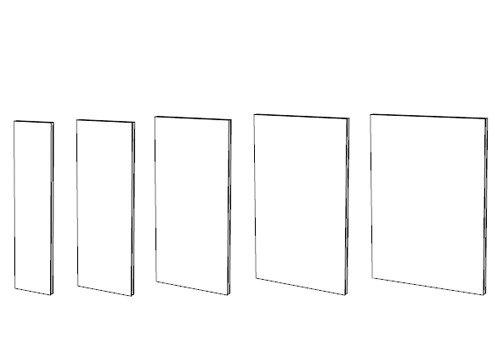

The low wall element of 1570 mm is available in five different widths of 200, 400, 600, 800 and 1000 mm.
55 mm thickness, covered with textile.

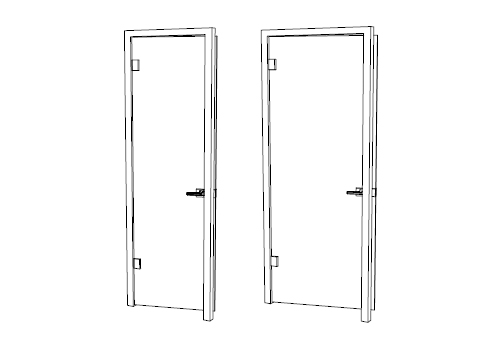

Black/grey aluminium frame profile and glass door leaf made of 8 mm toughened glass. Available in two widths: 800 and 1000 mm.

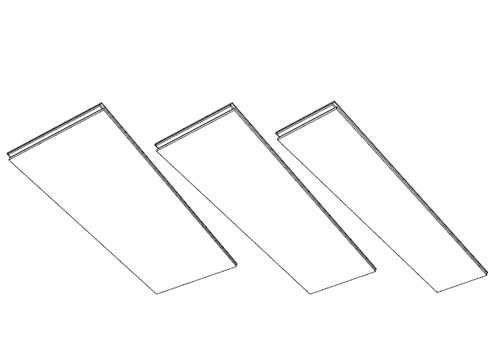

Variable dimensions of maximum 3400x12000 mm.
55 mm thickness, covered with fabric.
Surface in black grey and with sockets for LED and ventilation.

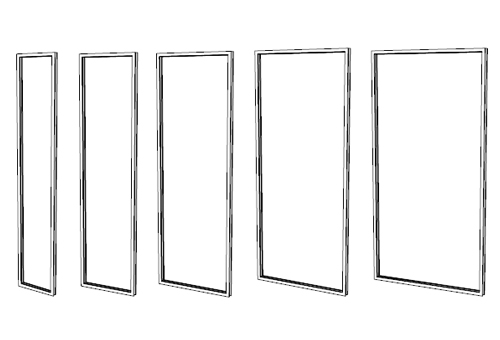

Black/grey aluminium frame and optional single or double glazing. 2270 mm high in different widths of 400, 6000, 800, 1000 and 1200 mm.

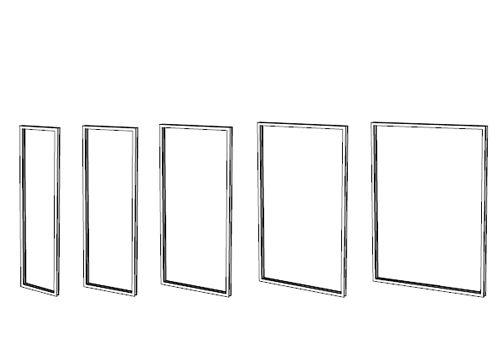

Black/grey aluminium frame and optional single or double glazing. 1570 mm high in different widths of 400, 6000, 800, 1000 and 1200 mm.

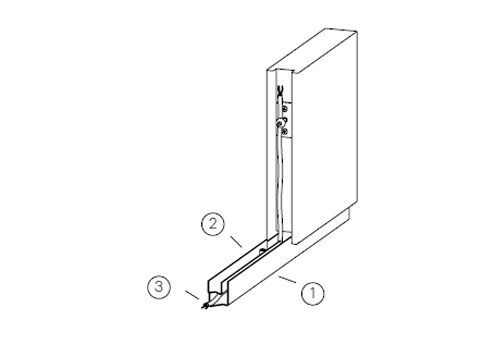

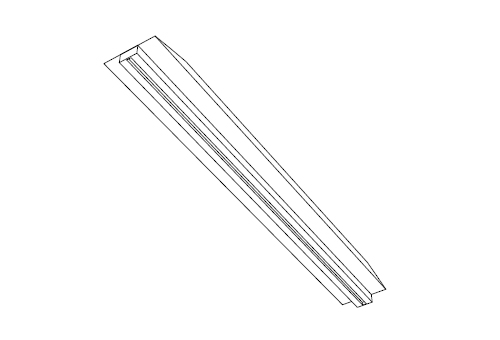

1. Floor profile
2. Height adjustment
3. Cable duct

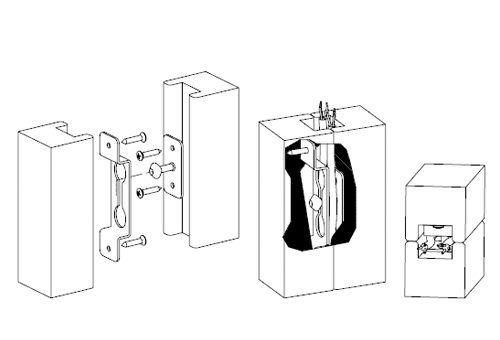

Suited for fabric and glass elements.
Possible element connections.
Feel free to fill in this form with your contact information plus a description of your project or acoustic challenge and we'll gladly perform a calculation of the acoustic situation and work out proposals for optimisation.
